2.1 Student Design Center (SDC) and Laboratory Setup Description

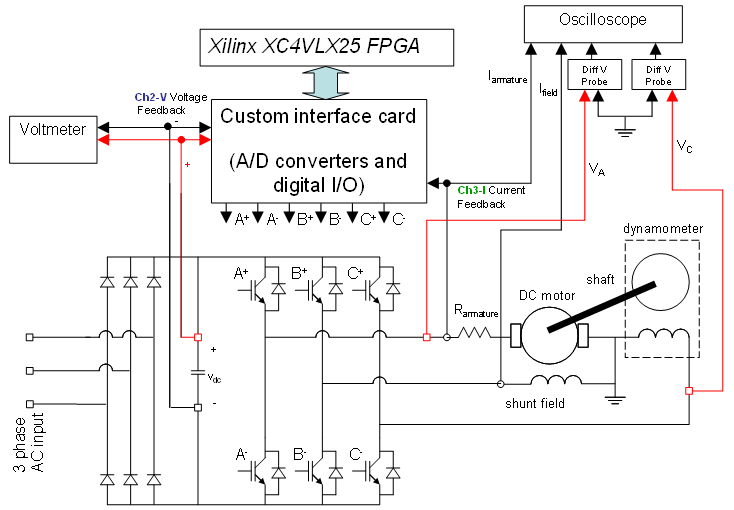

Figure 1 shows a block diagram of the hardware configuration including the CAD tools, a Semikron power module [5], DC motor, dynamometer and measuring instruments.
Figure 1: Schematics of the lab set up
